NEW: 245mm x 6-hole mount Ducati rear floaters now available, these are simple bolt-on upgrades that fit a wide range of models including:
REAR FLOATERS
The new range of the patented AXIS Design in a very light-weight rear floater concept are in stock with most 220mm applications. The 240mm floaters are available for the Ducati 999 & Desmosedici as well as many KTM models. The 245mm Ducati units are now in stock for all the 4-hole mount models.
600/620/695/696
750SS/M750
800SS/M800/851/888
900SS/900SL/900CR/M900
ST2/ST3/ST4
Sport Classic Series / GT
899/959 Panigale
Will also accommodate the `98-01 Yamaha R1 (with aftermarket wheels)

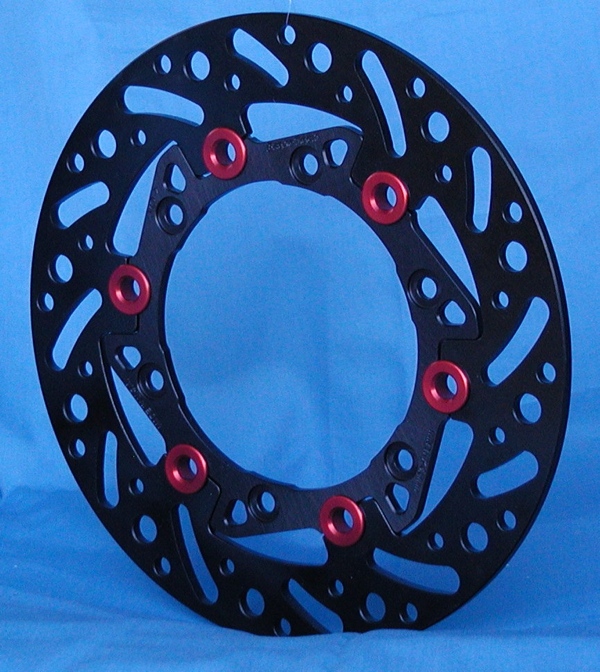

NEW! BTD247R
Comparative weight:
BTD247R: 245mm x 5.0mm AXIS/Iron, 1lb 11.0oz (765g)
BTD247RS: 245mm x 5.0mm AXIS/Cobra SS, 1lb 10.2oz (744g)
245mm x 4.0mm OE rotor:
OE stainless fixed mount monolithic rotor, 1lb 14.7oz (870g)

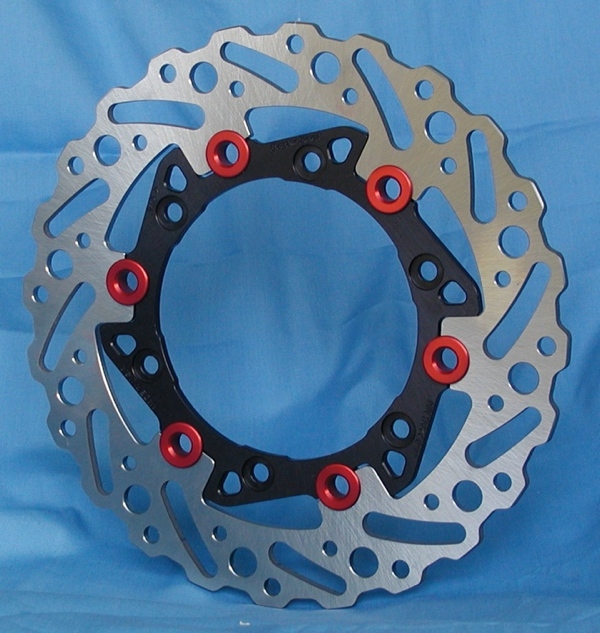

NEW! BTD247RS
Also new is the 2014 model Ducati 899 Panigale: BTD248R & RS
Virtually identical to the above BTD247R rear floater but tailored to precisely fit the OE ABS sensor ring
220mm Applications include:
Aprilia RSV’s & V4
BMW HP4 / S1000RR
Benelli Tornado’s
Honda CBR’s, RC51 & VTR Kawasaki ZX10R & ZX6R KTM RC8
Suzuki GSX-R’s Triumph 675, Speed Triples & Daytona’s
Yamaha YZF-R1 & R6
These remarkably lightweight and patented full-floaters weigh in at a stealthy 640g to 680g, depending on application.
Unique in design and appearance, the AXIS rear floaters will be a limited premium line intended for late model European and select Japanese Sportbikes (for use with OE calipers). Incorporating our patented floating architecture which is the hallmark of our AXIS front floaters, these lightweight 100% billet units weigh at 10-35% less than the OE units. All of the considerable braking forces are channeled through the trademarked Direct-Link™ architecture, comprising over an 800% increase in surface area load transfer as compared to conventional floating brake rotors…simply far superior by design! Our race-spec ductile iron units improve overall brake response with not just more power but strategically, considerably improved control and modulation at the brake pedal (as well as reducing brake drag).
Granted, rear brakes have historically not been a significant player in the Sportbike market, but never before has a truly innovative full-floating rotor been developed and targeted for this application. With it’s distinctive design, improved performance parameters and huge weight reduction, we bring an entirely new dimension to this element of braking technology.
Intended for use with OE calipers, the new AXIS/Rear floaters will be offered for nearly all late model European and select Japanese Sportbikes.
NOTE: Requires rear wheels with “Post” type mounting face that allows adequate space for the bobbins to extend through the backside of the center carrier. Will not fit on the following OE rear wheels (without user end modification to the wheel) but rather are intended for use with the full range of Aftermarket wheels employing the OE mounting pattern:
• Honda CBR’s
• Suzuki GSX-R’s
• Yamaha YZF-R1 & R6
• Honda CBR’s
• Suzuki GSX-R’s
• Yamaha YZF-R1 & R6
SPECIAL NOTE: All Japanese Sportbikes with Nissin calipers require a small amount of relieving of the OE caliper bracket to provide clearance for the floater button flangehead.
DUCATI 1098/1198 and HyperMotard, M1100, 848 series includes the requisite speedo sensor triggers where required.
IMPORTANT FITMENT NOTE: The ABS sensor ring of the 4-hole mount models must be relieved around the bobbin area in order to allow space for the OE sensor ring to sit flush on the carrier.
AXIS/Iron Black GunKote: This is a rust inhibiting coating which is thermally bonded on to minimize corrosion. It must be cleared from the pad sweep area before the rotors become fully functional. Please click here for the one page instruction guide: AXIS Iron Rotor Clearing instructions
Iron provides a higher coefficient of friction over stainless, with more feel and feedback at the brake lever. But get them wet – they’re going to rust. If you’re a fair weather rider, then it’s a non-event and not an issue. However, if you ride distances where inclement weather is a definite possibility, you’re better off with our AXIS/Cobra stainless steel series in the optimized petal design.
Entirely made in the U.S.A.
• Red bobbins are standard (blue and black optional).

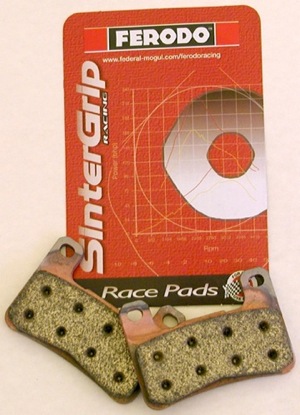

Brake Pad recommendations: utilize either the Ferodo Platinum organic or for a more responsive rear brake, the HH-rated SinterGrip ST brake pads.
ABS MODELS: Many late model motorcycles with ABS sensor rings requirement a light modification in order to fit and operate correctly with the AXIS rear floaters, the link here shows this in diagram form: OE Sensor Ring Mods
NEW!

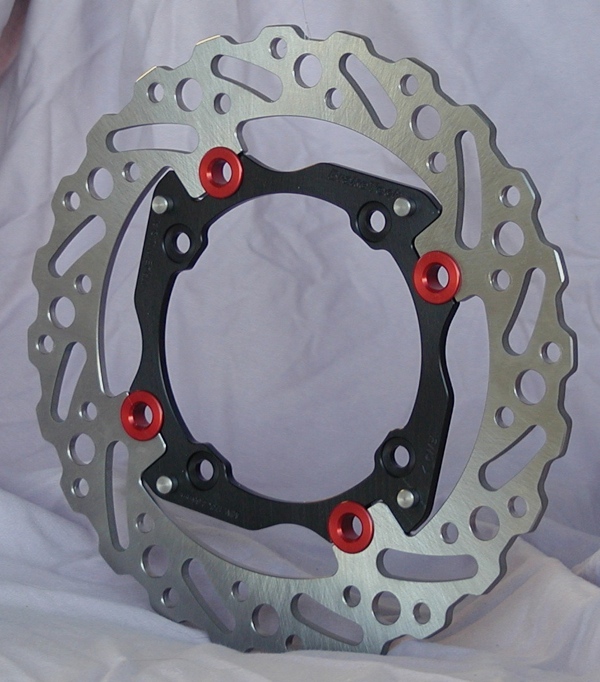

AXIS/Cobra 245mm x 5mm Rear Floater; Ducati 1098, 1198 & StreetFighter
See downloadable application guide for complete details (speed triggers standard)
IMPORTANT FITMENT NOTE: The ABS sensor ring of the 4-hole mount models must be relieved around the bobbin area in order to allow space for the OE sensor ring to sit flush on the carrier.
NEW!
AXIS/Iron 245mm x 5mm Race-Spec Rear Floater; Ducati 1098, 1198, 1199 & StreetFighter
Comparative weight:
245mm x 5.0mm AXIS/Iron, 1lb 10.7oz (756g)
245mm x 5.0mm AXIS/Cobra SS, 1lb 9.8oz (730g)
1098R 245mm x 5mm OE rotor:
245mm x 5mm OE stainless rotor, 2lbs 3.7oz (1012g)
NEW!

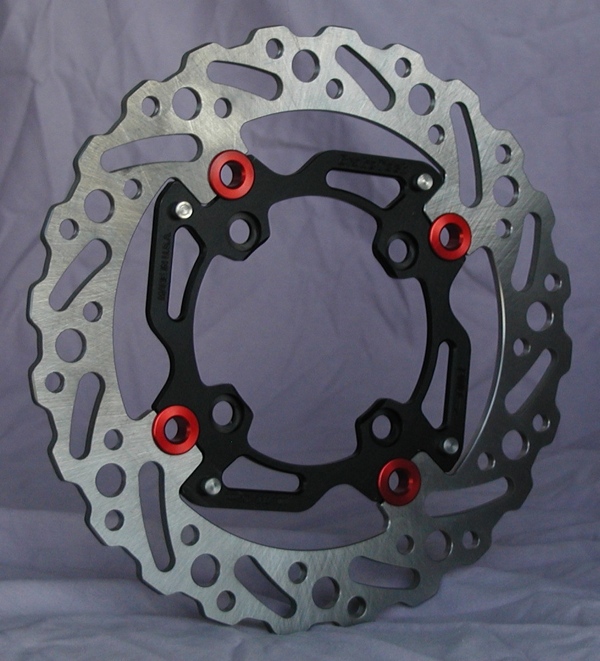

AXIS/Cobra 245mm x 5mm Rear Floater; Ducati HyperMotards, M1100, 848 & others
See downloadable application guide for complete details (speed triggers standard)
IMPORTANT FITMENT NOTE:
The ABS sensor ring of the 4-hole mount models must be relieved around the bobbin area in order to allow space for the OE sensor ring to sit flush on the carrier.
Yamaha YZF-R1/R6 (aftermarket wheels) – Weight: 1lb 8.1oz [682g]

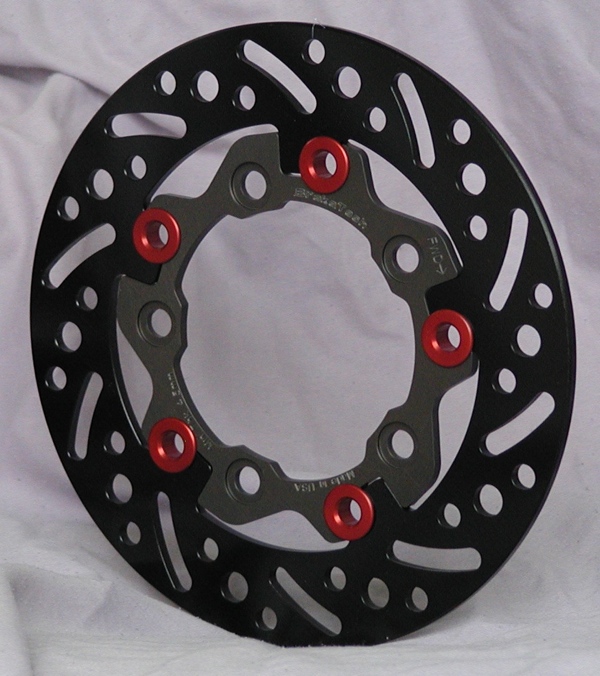

AXIS/Iron 220mm x 5mm Rear Floater; Aprilia RSV Mille & V4 Series, plus
AXIS/Iron 220mm x 5mm:
GSX-R (aftermarket wheels) – Weight 1lb 8.0oz [680g]
Note: Direct bolt-on for the 2011 GSX-R600/750 O.E. Wheels
AXIS/Cobra 220mm x 5mm:
GSX-R (aftermarket wheels) – Weight 1lb 7.5oz [665g]
Note: Direct bolt-on for the 2011 GSX-R600/750 O.E. Wheels
AXIS/Cobra:
Aprilia RSV/4 220mm x 5mm Rear Floater, 1lb 7.1oz (656g), stainless steel
Yamaha YZF-R1/R6 (aftermarket wheels)
AXIS/Iron:

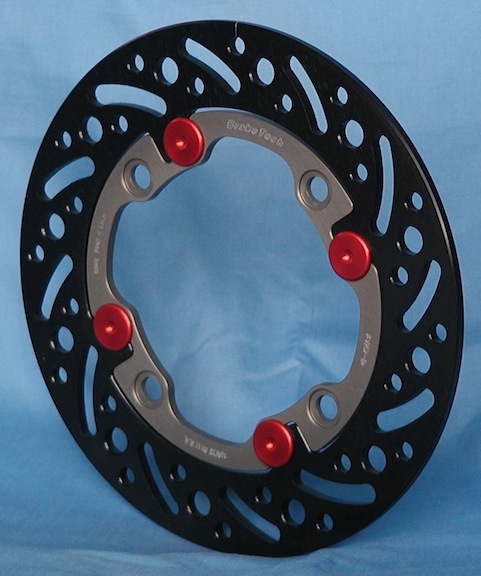

Honda CBR 220mm x 5mm Rear Floater, Billet Iron Race Series for Aftermarket and modified OEM wheels
Kawasaki ZX10R/ZX6R (OEM & aftermarket wheels)
AXIS/Cobra:

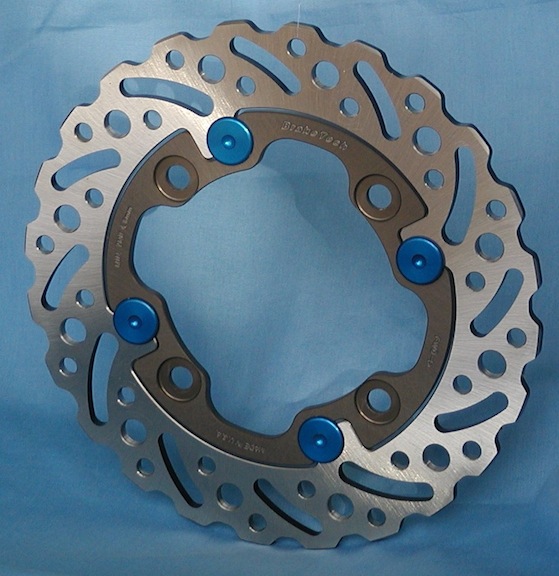

Kawasaki ZX10R / 6R, 220mm x 5mm Rear Floater, 1lb 6.6oz (640g), stainless steel
Honda CBR600RR / 1000RR (OEM & aftermarket wheels)
Shown with optional blue hard-anodized bobbins, red is standard
